GCE 64s 204.8V 100A Battery BMS High Voltage Battery Pack Balance for UPS ESS Golf Carts Electric Forklifts Solar Energy BESS
Product Overview
This integrated BMS supports 30S-75S lithium battery packs with a master-slave all-in-one design. It features efficient, stable, and reliable performance with dimensions of W410×H232×D128mm.
Key Features
- Latest product developed by GCE with unique market position
- Master & Slave all in one compact design
- Supports 30S-75S lithium battery configurations
- Relay solution for multiple strings of small capacity batteries (<100Ah)
- Cost-effective solution that reduces user expenses
- High integration with minimal installation space
- Long life cycle (>3000 cycles at 80% DOD)
- Environmentally friendly with no heavy metals
- Maintenance free with no memory effect
- Internal BMS with full protection features
Technical Specifications
| Product Name |
Integrated BMS (master slave together in one) |
| Model No. |
RBMS07S64S100A |
| System Voltage Range |
120 - 228 V DC |
| Startup Mode |
DC start (optional AC and DC starter) |
| Number of Battery Strings |
30-75S |
| Balance Type |
Passive resistance equalization |
| Balanced Current |
100mA ± 10mA (Single cell 3.4V) |
| Temperature Sampling |
12 Battery temperature (4×3), Accuracy: ±2℃ |
| Voltage Sampling Accuracy |
Single cell ±20mV |
| Communication Protocol |
CAN: 1 channel (communication with PCs/UPS)
RS485: 1 channel (communication with upper computer/PCS/UPS)
Dry Contact |
| Display Mode |
6-digit LED indicator with fault/operation/SOC power indication
Optional HMI display |
| Maximum Load |
Steady-state: 100A
Transient state: 150A/10S (Adjustable) |
| Protection Level |
2 levels:
Level 1: Cut off charge/discharge
Level 2: Micro cut-off switch, system power down |
| Operating Temperature |
Charging: -10°C to 75°C
Discharging: -20°C to 75°C
Storage: -40°C to +75°C |

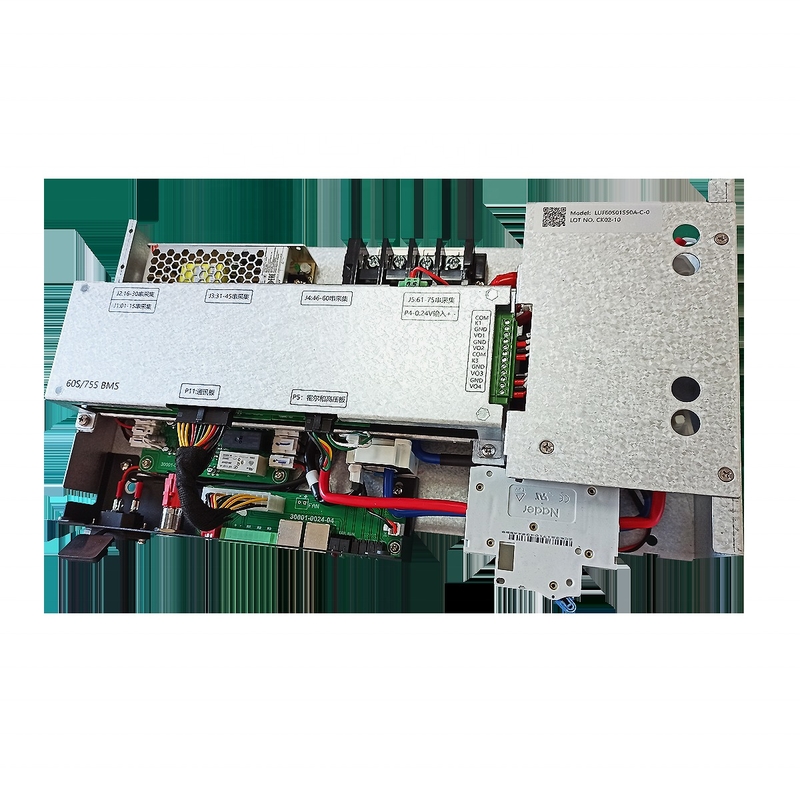

Product Images
BMS Component Size and Interface
Applications
Home storage
Island off-grid energy storage
Micro-grid applications
UPS power supply
Power System 220V DC power supply
Company Profile
Hunan Group Control Energy Technology Co., Ltd. (GCE) is a high-tech company specializing in BMS and lithium battery peripheral equipment R&D. Our intelligent lithium battery management system uses international leading technology to improve battery management efficiency and prolong service life. Our advanced BMS control strategy provides solutions that overcome competitors' difficulties.
Certifications
Packing & Shipping
Frequently Asked Questions
1. Are you a manufacturer or simply a trading company?
We are a manufacturer, and we sincerely welcome you to visit our factory.
2. Can I get some samples?
Yes, a sample order is available for quality checking and market testing.
3. What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO
4. How about the delivery time?
The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
5. What are your terms of payment?
Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we'll discuss the details.
6. What are your warranty terms?
We offer a 3-year warranty for RBMS, 1-year warranty for PCB.
7. Can you produce BMS with customization requirements?
Yes, based on the order quantity, we can make some small adjustments.
8. How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
9. What Trade Terms are available?
No limitation on the trade terms. We normally do EXW for orders amounts smaller than 20000USD, and FOB for the rest ones. Moreover, we can send BMS via DHL/UPS/FEDEX quickly and easily.
10. Is your BMS easy and convenient to install & test?
This is our 4th generation high voltage BMS. It's an overall BMS solution, meaning you don't need professional technology to install our high-voltage BMS to form a complete battery system.
11. What benefits do customers get?
Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters according to customer needs to ensure system stability, reliability and efficient performance.
